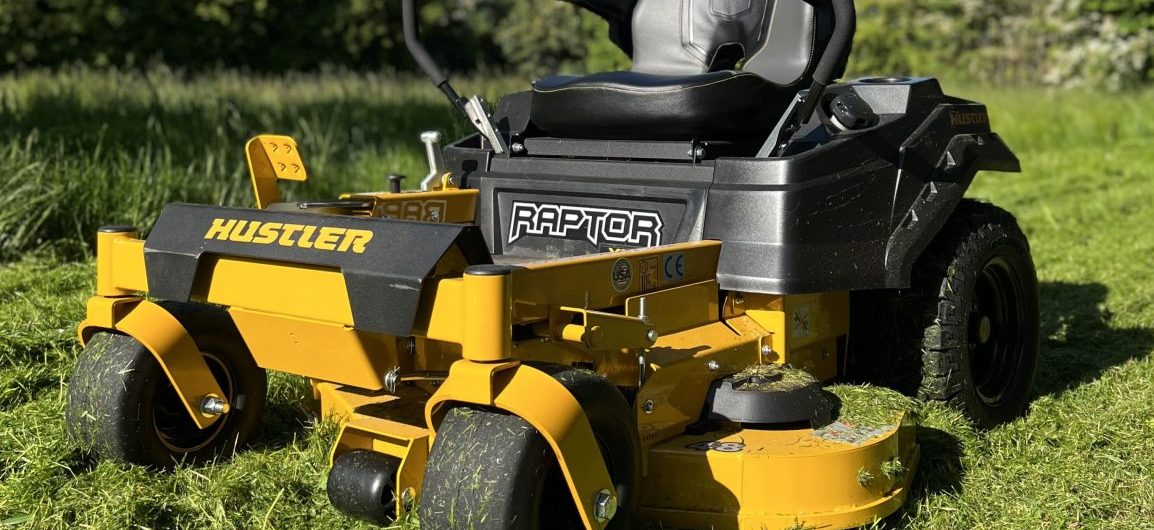

Raptor XD
Hustler – Residential
The Raptor XD is the ideal zero-turn for homeowners with one to three acres of property, a premium lawn mower in the residential zero-turn category.
Other deck sizes available: 42″-60″.
Manufacturer | Kawasaki FR series |
HP | 42” & 48”deck, 21.5HP. 54” deck, 23HP. 60” deck, 24HP. |
Displacement | 726cc |
Cooling | Air Cooled |
Drive System | |
Type | Dual Hydrostatic |
Transmission | HydroGear ZT2800 |
Speed | Up to 7.5 mph |
Parking Brakes | Patented Automatic |
Decks | |
Cutting Width | Side discharge 42”, 48”, 54”, 60” |
Cutting Heights | 1.5″ – 4.5″ |
Deck Lift | Foot Operated |
Depth | 4.5″ |
Blades | 42” deck, 2. 48”, 54” & 60” deck, 3. |
Blade Length | 42” deck, 20.50”. 48” deck, 16.50”. 54” deck, 18.50”. 60” deck, 20.50”. |
Blade Tip Speed | 42” deck, 18,400”. 48” deck, 18,500. 54” deck, 18,800”. 60” deck, 18,300. |
Spindles | Aluminum with 1” shafts and double lip sealed ball bearings |
Drive | Ogura GT1.5 |
Construction | Fabricated 11 ga. steel |
Spindle Mounts | Reinforced 7 ga. steel |
Impact/Trim Areas | 3/8″ x 1″ steel bar |
Construction: | |
Frame | 1.5” x 3” steel tubing |
Front Axle | Fabricated with sealed ball bearings |
Front Caster Wheels | Sealed ball bearings |
Front Caster Forks | Fabricated 3/8″ steel |
General: | |
Seat | Premium bolstered high-back seat with armrests and built-in lumbar support |
Fuel Capacity | 3 gal. |
Cup Holder | Yes |
Front Tire | 42” 13 x 5. 48”, 54” & 60”, 13 x 6.5. |
Drive Tire | 42”& 48”, 20 x 8 – 10 BigBite™. 54” & 60”, 20 x 12 – 12 BigBite™ |
Dimensions | |
Weight | 42” deck, 616 lbs. 48” deck, 627 lbs. 54” deck, 653 lbs. 60” deck, 680 lbs. |
Height | 43.7″ |
Length | 42” & 48”, 69.3”. 54” & 60”, 71.1” |
Width | 42” deck, 45.8”. 48” deck, 52.5. 54” deck, 58.5”. 60” deck, 64.4”. |
Tire Width | 42” & 48” deck, 42”. 54” & 60” deck, 48.6”. |
Trim Side | 42” deck, 1”. 48” deck, 4.5”. 54” deck, 3.2”. 60” deck, 7.2”. |
Productivity: | |
Acres Per Hour | 42” deck, 2.54. 48” deck, 2.91. 54” deck, 3.27. 60” deck, 3.64. |
